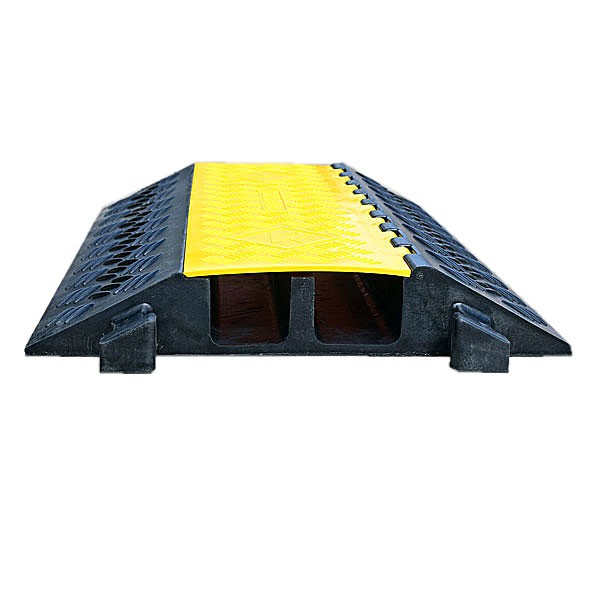

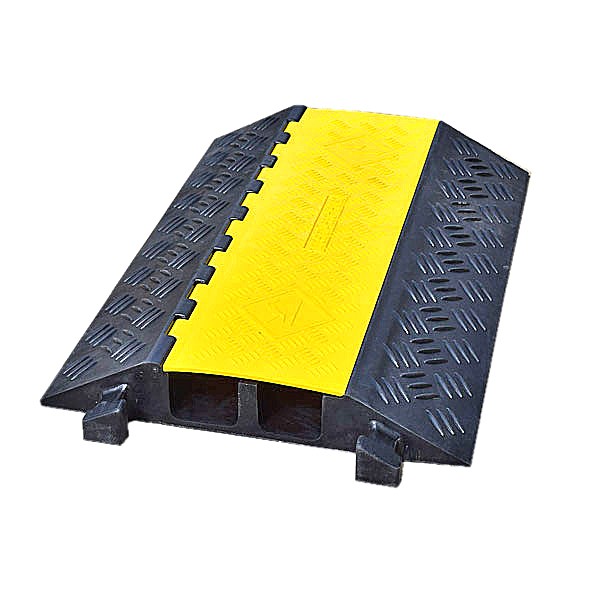

2 Channel Hose Protector
- Ideal for large diameter cables and hoses
- Increased ability to handle heavier and faster traffic
- Manufactured from a high density non-conductive rubber compound
- Bright yellow striping for excellent visibility
- Suitable for indoor or outdoor use
- Independently crush tested
- Anti-slip surface pattern

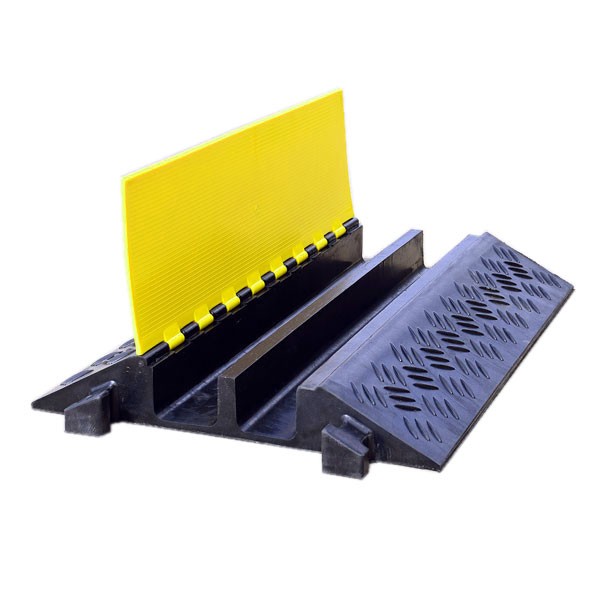

Constructed from heavy duty plastic with a yellow panel lid which opens to allow hoses and cables to be inserted into channels to be protected when lid is closed. Movement restricting grips on underside and the heavy weight of this cable protector prevents the module from unwanted movement. There is capacity for securing module to permanent area by way of extruding bolts from road services (not included). A carry handle on the underside is included in the design for easy transport and handling.
|
SKU |
Description |
| HOSE2CH | Large Diameter 2 Channel Cable and Hose Protector |
| Width | Height | Length | Channel Size | Cable Capacity | Availability For Fixings? | |
|---|---|---|---|---|---|---|
| 2CHCP | 250mm | 45mm | 1000mm Interlocking Lengths | 2 - 30mmH x 30mmW | 7 | Yes |
| 3CHCP | 600mm | 75mm | 900mm Interlocking Lengths | 3 - 50mmH x 55mmW | 10 | Yes |
| 5CHCP | 600mm | 75mm | 900mm Interlocking Lengths | 5 - 50mmH x 40mmW | 15 | Yes |
| CP5CH | 500mm | 50mm | 900mm Lengths with dog-bone connectors | 5 - 35mmH x 32mmW | 15 | No |
| HOSE2CH | 620mm | 100mm | 900mm Lengths with dog-bone connectors | 2 - 76mmH x 90mmW | 15 or 2 large hoses | Yes |
